Eagle Signal-Max Count

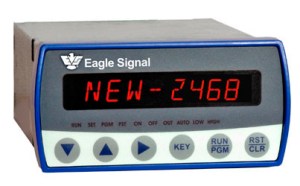

Introducing: The New Max Count  Electronic Preset Timer/Counter.

The latest introduction into Eagle Signal’s line of electronic timers and counters is the New Max Count Series is a next-generation electronic preset counter providing the ultimate in flexibility, speed and ease of use. The New Max features a large 8-digit Alpha-Numeric LED display that allows programming setup to be done using easy-to-understand, text — not confusing coded numerals.

Communications options for either wired RS 485 Modbus, Ethernet or wireless allows remote access to “real-time” data and operating variables.

Uni-directional or bi-directional counting is accurately  managed at speeds to 40kHz.  This makes this new generation of counters ideal for applications requiring hi-speed, high-resolution measurements for positioning, cut-to-length, batching and packaging. Programmable Correction-Constant and Decimal Point features let the LED display provide its readout in the appropriate engineering unit and resolution.

Eagle Signal, “the premier name in timers” is the reputable leader in electronic and electromechanical timer products, including preset, elapsed time (also known as time totalizer or hour-meter), reset timer, repeat cycle timer, sequencers and related accessories for rugged and reliable production monitoring of industrial manufacturing applications for over 70 years. Ranging from our popular electromechanical timer products to powerful microprocessor-based control timers, Eagle Signal offers a full range of panel mount timers as well as time delay and general purpose relays.

Learn More

SaveSave

SaveSave

Posted on Leave a comment

ASO Low-Current Sensors

ASO Low-Current Sensors from NK Technologies are specialised current operated switches which combine an ultra-sensitive current transformer and signal conditioning electronics into a single package for sensing AC current from 3-350mA.

Useful for signal or lamp status monitoring, detecting minute fault currents or fan proving, the ASO features solid-state outputs and jumper-selectable ranges, which make it a versatile choice for low-current status indicating applications.

Applications:

  • Fan Monitoring
  • Fan status in heating and drying applications
  • Identify lamp outages or other malfunctions through changes in current consumption
  • Fractional HP Motors
  • Ideal for monitoring small motors used in critical applications; for example, fan-proving on a crucial cooling fan
  • Fault current sensing
  • Detects low levels of current resulting from fault conditions.

Features:

  • Wide range of output options
  • Dependable, solid state switch N.O. or N.C. contacts rated at 240VAC or 30VDC
  • Compatible with standard automation controllers.
  • Isolated inputs and outputs:
  • Inductive sensing eliminates insertion loads on monitored circuit, effectively isolating it from unit
  • Isolated outputs simplify wiring and enhance safety.
  • Adjustable Setpoint’s:

Setpoints are field adjustable from 3mA to 350mA, speeding installation and allowing for tailored applications. UL, CUL and CE approval accepted worldwide.

The ASO Low-Current Sensors are available from Sensit.

Posted on

Dynapar-CPL Encoder Couplings

CPL Flexible Shaft Couplings:

  • Maximum mechanical, thermal, and electrical protection for
  • encoder shaft connections
  • Three-beam helical design restricts torque “windup”
  • Clamp attachment. No setscrews to score or pit shafts
  • Full range of models designed to match specific encoders are
  • supplied with shaft size adaptors

Application/Industy:
CPL Series couplings are carefully matched to the requirements of our encoders and are an excellent, low cost way to protect your investment and avoid equipment downtime.

Description:
The method of coupling rotational input to an encoder is an important consideration. Excessive shaft loading and poor environmental
isolation are the leading causes of encoder failure and operational errors.

Even the most carefully designed machinery will produce shaft forces due to inherent thrusts, and eccentricities. Since encoder shafts and bearings must be engineered to have very restricted axial and radial play, using a Dynapar brand CPL Series coupling affords maximum protection against these common hazards.

A unique 3-beam design divides the coupling’s helix into three segments.
This feature maintains transfer accuracy by restricting windup during torque, yet retains full protective flexibility. In addition to controlling mechanical shaft and bearing loads, the coupling further protects the encoder by providing a high degree of electrical and thermal isolation between coupled shafts. This is accomplished with a phenolic insulator-insert that blocks passage of potentially damaging heat, electrical currents and static charges.

Each CPL Series coupling is supplied with two insulator-inserts (three for metric models) that allow it to fit standard shaft diameters (see Models table, Secondary Bore). Attachment at both ends is via integral 360° clamps that firmly grip the encoder shaft and input shaft, remaining slip-free to the rated
torque of the coupling.

Learn More

Posted on

Veeder-Root Counters

Veeder-Root™ offers the broadest selection of rugged and economical electronic, electromechanical and mechanical counters. Veeder products encompass a complete line of Totalizing, preset and predetermining electronic counters as well as diverse process and rate indicators. Veeder-Root™, the best known name in counters, has provided non-stop performance and production monitoring in industrial manufacturing applications for over 100 years.

Veeder-Root™ counters and indicators come in a variety of types, sizes and accessory options. Consider just a few of the following of our commercial and industrial counter varieties: Electronic Counters – Mechanical Counters – Electric Counters.
