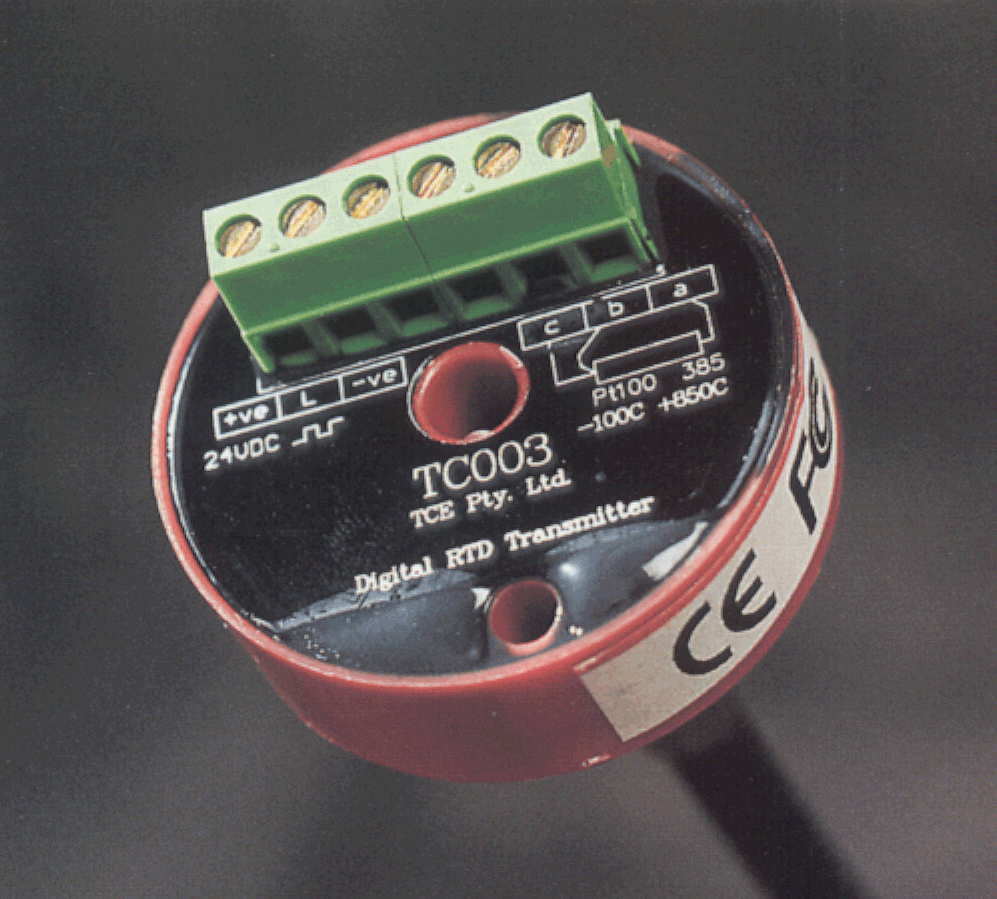

TC-003 Digital RTD Transmitter – Hockey Puck Style:
The TC-003 Digital RTD Temperature Transmitter is a unique device designed to transmit the temperature measured by a PT100 RTD sensor to a PLC digital input. Although it requires only one normal digital 24VDC input on the PLC, it provides an accurate temperature measurement for use in the PLC program.
It is packaged in a standard ANSI 2”, 50mm “hockey-puck” to be installed in the head of normal industrial temperature probe assembly. The TC-003 transmitter is connected to the normal PT100 RTD.
It measures the resistance of the PT100 RTD and then calculates the corresponding temperature. It then outputs the measurement as a low speed serial pulse train to a standard PLC digital input. The PLC receives 16 bits of data in a format ready to load into a 16 bit data register. The PLC register ends up containing the value of the measured temperature in degrees C x 10. For example if the measured temperature is -5°C the transmitted data will be -50, and if the measured temperature is +10°C the transmitted data will be 100.
Is it compatible?
The PLC digital input does not need to be a high speed or counter type input. Any normal 24VDC digital input is suitable. The rate of data transmission is selected to allow non-time critical operation of the receiving PLC. The shortest pulse time is 100mS, so the PLC needs
to have a maximum scan time of 50mS. This is normally very easy to achieve. A small section of ladder program collects and interprets the pulses in sequence and loads a register with the measured temperature value. There is no particular limit to the number of TC-003 transmitters that can be used with a single PLC. It depends only on the number of inputs and program and data memory available.
The TC-001SS Digital Temperature – Strap on S/S Version:
Transducer is a unique sensor designed to monitor temperature and transmit the value to a PLC digital input. Although it requires only one normal digital 24VDC input on the PLC, it provides an accurate temperature measurement (inbuilt PT-100 RTD) for use in the PLC program. It is packaged in a robust 25mm square Stainless Steel housing, 40mm long, with a 3metre long wiring.
The TC-004 Analog – Din Rail mount Version.
Digital Converter is a unique device designed measure an analog input and to transmit to a PLC digital input. Although it requires only one normal digital 24VDC input on the PLC, it provides an accurate analog measurement for use in the PLC program.
It is packaged in a standard Phoenix DIN Rail mounting enclosure, with a removable 12-way screw terminal strip.
It measures the analog input, 0 – 20mA or 0 – 10V. It then outputs the measurement as a low speed serial pulse train to a standard PLC digital input. The PLC receives 16 bits of data in a format ready to load into a 16 bit data register. The PLC register ends up containing the value of the measured analog value as 0 – 32767.
