Opkon-Wire Draw Position Potentiometers & Encoders.

Draw Wire Potentiometer:

● Potentiometric, voltage divider
● Easy mounting
● High protection degree
Main Applications:
Offers easy mounting and quick solution for linear transducers
Hydraulic transducers
Cranes
Medical applications
General automation applications

  • Measurement type Resistive
  • Linearity 0,5%, 0,1% or 0,05%
  • Measurement stroke – 800mm, 1800mm
  • Output signal type Voltage divider
  • Output signal Analogue voltage
  • Supply voltage + 28 VDC max
  • Electrical connection 2.5 meter cable (standard)
  • Working temperature -20°C ….+80°C
  • Case material Plastic, steel
  • Protection Degree IP 64

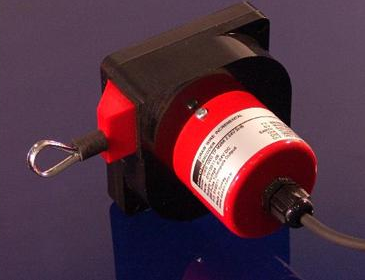

Draw Wire Encoder:
● Incremental output
● Easy mounting
● High protection degree
Main Applications:
Offers easy mounting and quick solution for linear transducers
Hydraulic presses
Wood working, profile and metal processing machinery
Medical applications
General automation applications

  • Measurement type Optical
  • Resolution 200mm/1000pulse
  • Measurement stroke – 1000mm, 2000mm,3000mm,4000mm
  • Output signal type Totempole, TTL, Linedriver or HLD
  • Output signal A, B, Z or A,A’, B,B’, Z, Z’
  • Supply voltage 8-24 VDC or 5VDC
  • Electrical connection 2.5 meter cable (standard)
  • Working temperature -20°C ….+80°C
  • Case material Plastic, steel
  • Protection Degree IP 64
