● Potentiometric, voltage divider
● Easy mounting
● High protection degree
Main Applications:
Offers easy mounting and quick solution for linear transducers
Hydraulic transducers
Cranes
Medical applications
General automation applications
- Measurement type Resistive
- Linearity 0,5%, 0,1% or 0,05%
- Measurement stroke – 800mm, 1800mm
- Output signal type Voltage divider
- Output signal Analogue voltage
- Supply voltage + 28 VDC max
- Electrical connection 2.5 meter cable (standard)
- Working temperature -20°C ….+80°C
- Case material Plastic, steel
- Protection Degree IP 64

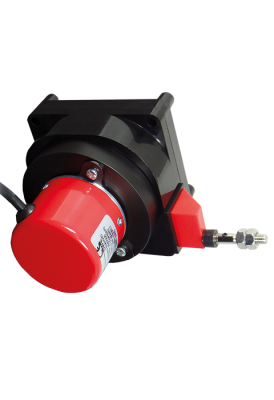

Draw Wire Encoder:
● Incremental output
● Easy mounting
● High protection degree
Main Applications:
Offers easy mounting and quick solution for linear transducers
Hydraulic presses
Wood working, profile and metal processing machinery
Medical applications
General automation applications
- Measurement type Optical
- Resolution 200mm/1000pulse
- Measurement stroke – 1000mm, 2000mm,3000mm,4000mm
- Output signal type Totempole, TTL, Linedriver or HLD
- Output signal A, B, Z or A,A’, B,B’, Z, Z’
- Supply voltage 8-24 VDC or 5VDC
- Electrical connection 2.5 meter cable (standard)
- Working temperature -20°C ….+80°C
- Case material Plastic, steel
- Protection Degree IP 64
